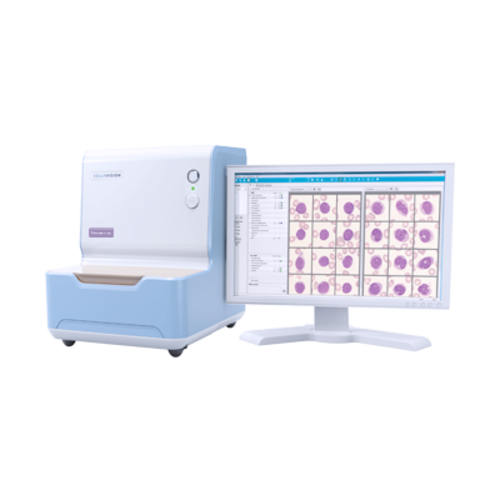

CellaVision® DC-1 VET

For canine and feline species, the CellaVision Peripheral Blood Application automatically pre-classifies white blood cells into the following classes: band neutrophils, segmented neutrophils, eosinophils, basophils, lymphocytes, monocytes and other. Non-WBCs are classified into nucleated RBC, giant platelets, thrombocyte aggregations, smudge cells and artefacts.

For avian species, white blood cells will be pre-classified as heterophils, eosinophils, basophils, lymphocytes and monocytes. Non-WBCs are classified into giant platelets, platelet aggregations and artefacts.


Slide Handling

  • Accepts slides with ground edges, clipped, round or square corners
  • Order ID for slides entered either manually or using an optional barcode reader
  • Slides are loaded one slide at a time
  • Analyses slides with blood smears

Quality Control

  • Cell location accuracy test for the verification of the hardware and stain quality
  • Built-in smear check

Storage Capacity

  • Primary storage: on local hard drive up to 1,500 slides (20 GB)
  • Secondary storage: unlimited when transferred to external storage media


  • Bi-directional LIS support, ASTM
  • Ethernet 100/1000 Mbps
  • Multiple CellaVision® DM/DC analysers can share a database

System Components

  • Slide Scanning Unit (SSU) with integrated PC and Windows 10 embedded CellaVision DM software

Size (W x D x H) and weight

  • 280 x 390 x 370 mm (11.0 x 15.4 x 14.6 inches)
  • 11 kg / 24 lbs


  • Approximately 10 slides per hour for orders containing RBC, PLT and 100 WBC
  • Approximately 5 slides per hour for complete orders including feathered edge scans


  • QC label
  • Hand-held barcode reader
  • CellaVision immersion oil
  • HemaPrep® blood smearing device
  • Label printer kit
